MiTek ADTT-TZKT Deck Tension Tie Kit, Steel

  • Model Number: ADTT-TZKT
  • UPC: 081942147336
  • Store SKU: loading
  • MiTek ADTT-TZKT Deck Tension Tie Kit, Steel

    • Availability:
      • Supplier SKU: loading
      • Web SKU: 102749073
    MiTek ADTT-TZKT

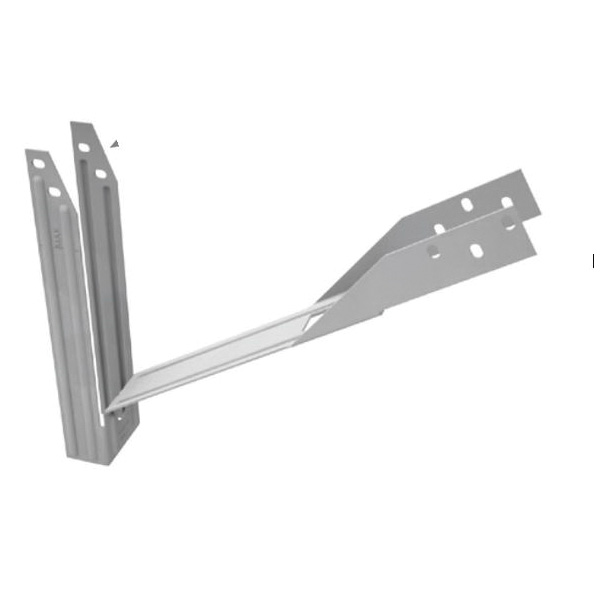

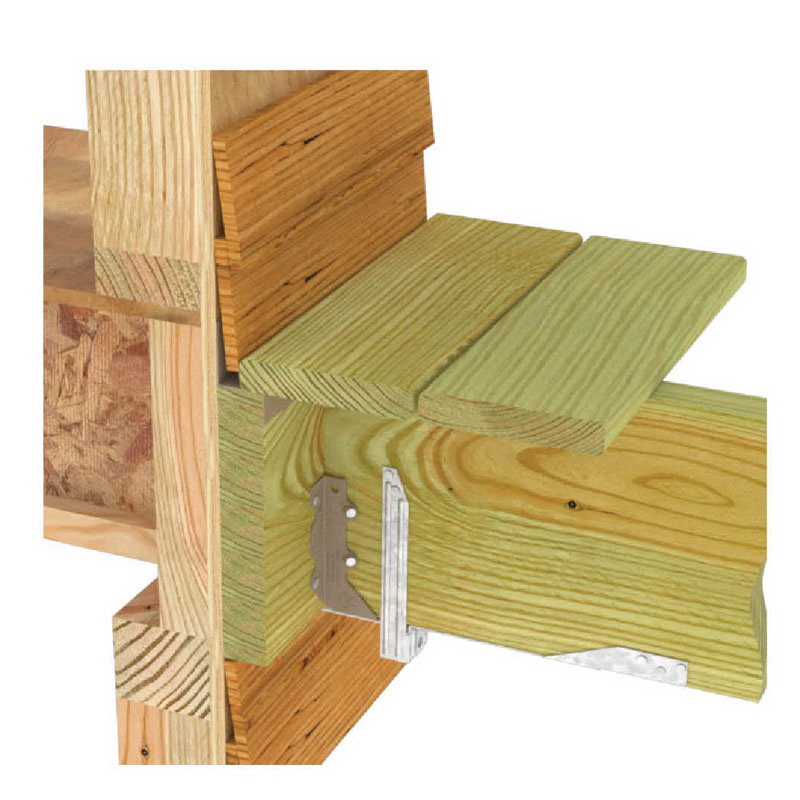

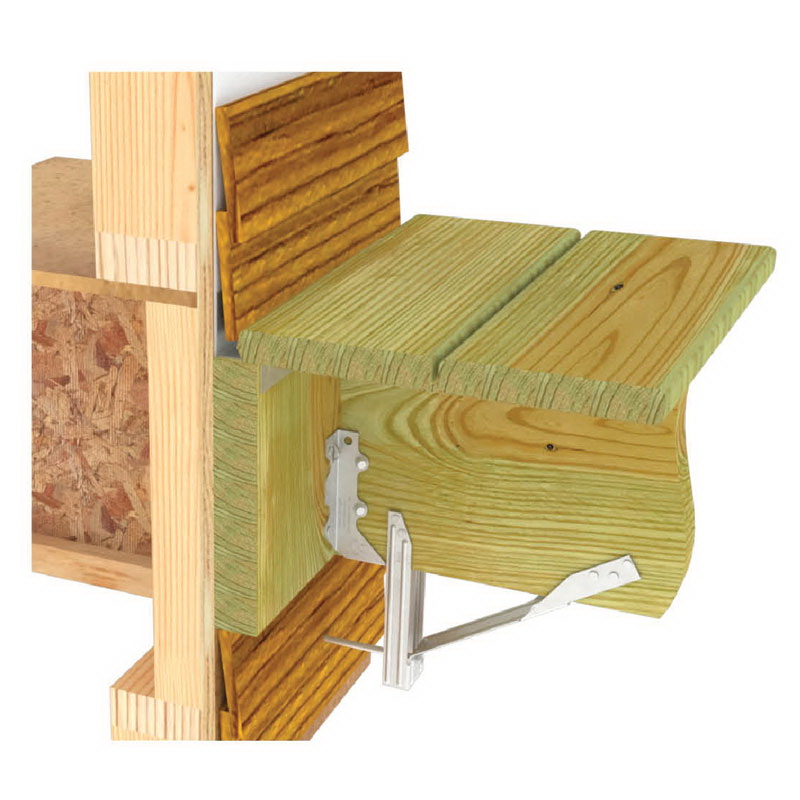

    Deck collapses are often caused by failure of the connection where the deck is attached to the main structure due to little or no lateral capacity. ADTT-TZ is an adjustable deck tension tie designed to effectively transfer the out of plane lateral loads of the deck to the house structure.

    Fastener Type    :    Screw
    Finish    :    Galvanized
    Includes    :    Connectors, (1) WS8-HDG, (10) LL915 Wood Screws per Connector
    Material    :    Steel
    • Adjustable design allows lag screw installation at variable distance below deck joist
    • Two-hole break-out washer (BO-W) will work with multiple screw sizes
    • Blocking extensions not required
    • Exceeds "Hold-Down Device" requirements per 2015 IRC, Section 507.2.4
